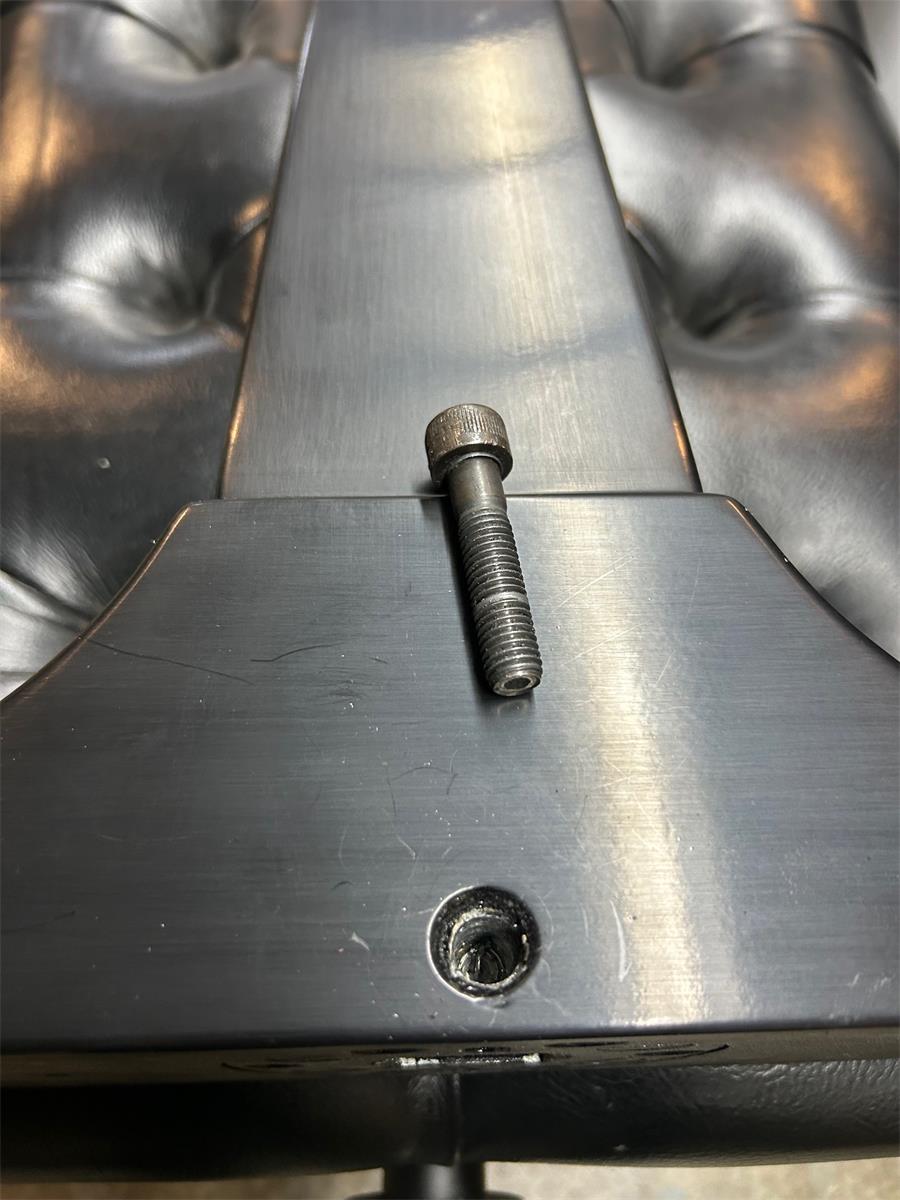

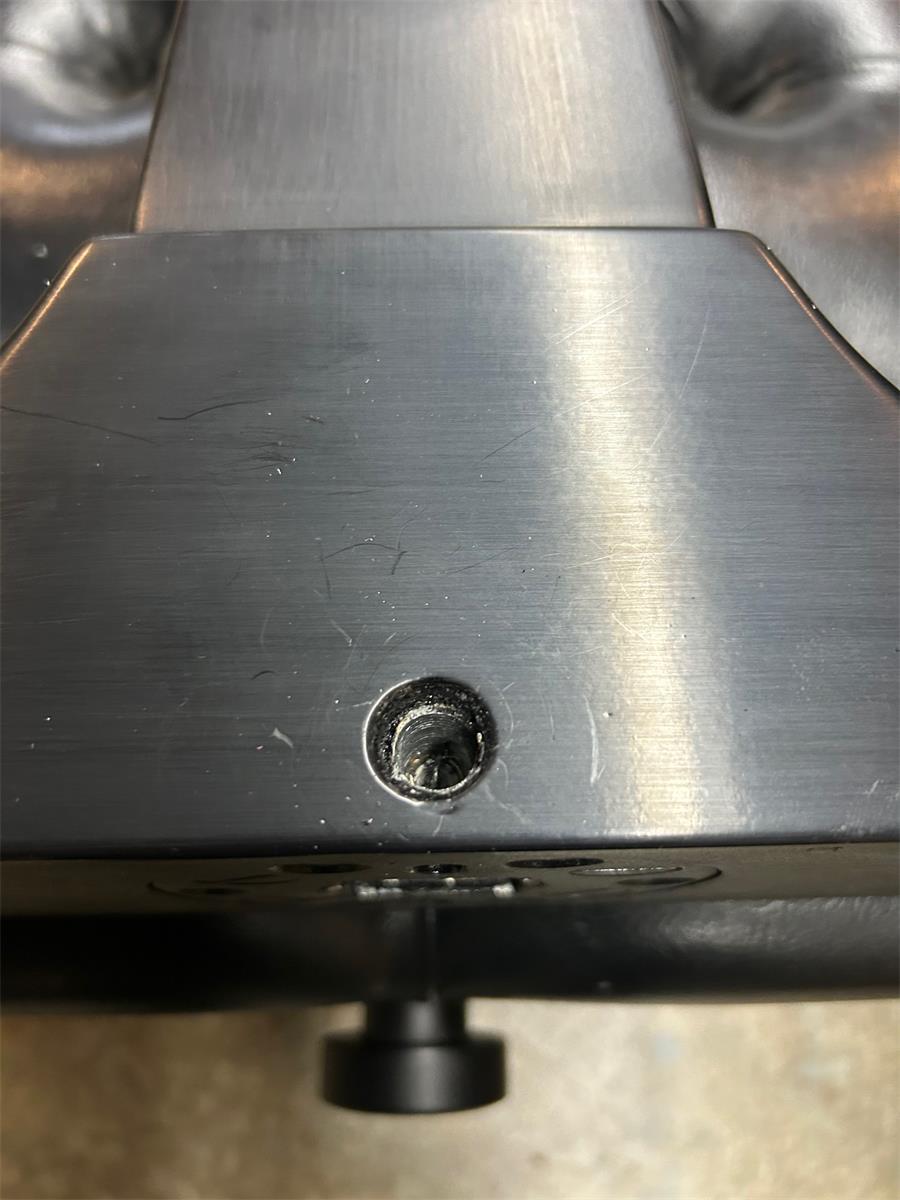

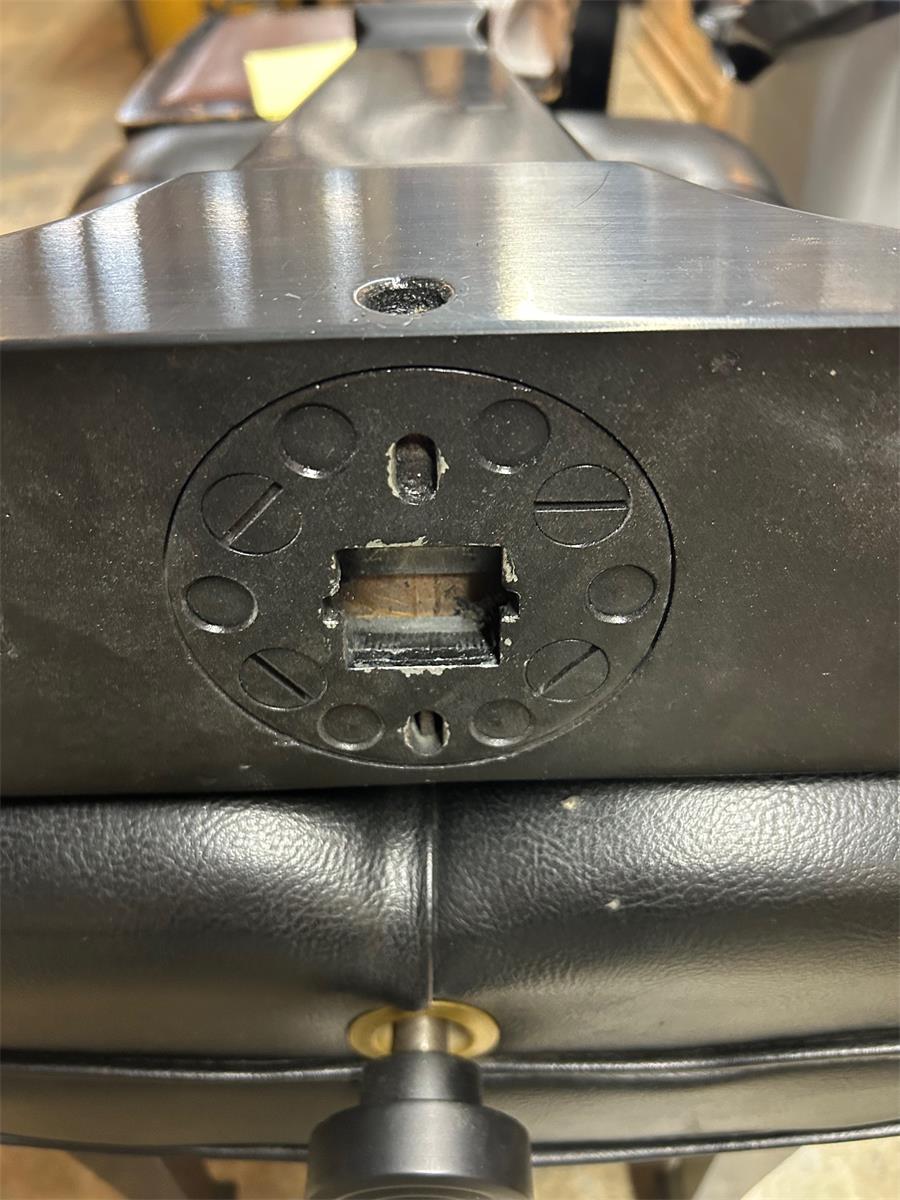

I have a Hamburg Steinway B that I'm working on.  The Threaded leg socket and set screw both seem to be stripped.  Probably have to replace the threaded socket  imbedded in the leg.  Has anyone actually done this specific job who can advise on removing the old socket?

Have you tried a thread restorer?

I have a Hamburg Steinway B that I'm working on.  The Threaded leg socket and set screw both seem to be stripped.  Probably have to replace the threaded socket  imbedded in the leg.  Has anyone actually done this specific job who can advise on removing the old socket?

Have you tried a thread restorer?

I have a Hamburg Steinway B that I'm working on.  The Threaded leg socket and set screw both seem to be stripped.  Probably have to replace the threaded socket  imbedded in the leg.  Has anyone actually done this specific job who can advise on removing the old socket?

Yes there is a threaded insert so there are two questions: how it's mounted in there, glued in or threaded in; and getting the replacements.  I have messages in to both NY and Hamburg Steinway on the parts. So mainly I'm wondering who has had to remove that insert and install a new one and what's involved.

Have you tried a thread restorer?

I have a Hamburg Steinway B that I'm working on.  The Threaded leg socket and set screw both seem to be stripped.  Probably have to replace the threaded socket  imbedded in the leg.  Has anyone actually done this specific job who can advise on removing the old socket?

I would guess (repeat...guess) that it's both threaded and with some adhesive used. That said, if I were faced with this I would attempt the use of an EZ-Out after first applying some heat to the general area (obviously not enough to damage anything, but enough to make it HOT, primarily the metal insert to weaken any glue bond that might be there, but secondarily to slightly think the wood around it).

If that ultimately did not work I would then likely drill it out to a point where I could finally remove fragments (hopefully) without destroying existing threads, but if necessary...a larger threaded insert can almost always be found to replace it.

Peter Grey Piano Doctor

Yes there is a threaded insert so there are two questions: how it's mounted in there, glued in or threaded in; and getting the replacements.  I have messages in to both NY and Hamburg Steinway on the parts. So mainly I'm wondering who has had to remove that insert and install a new one and what's involved.

Have you tried a thread restorer?

I have a Hamburg Steinway B that I'm working on.  The Threaded leg socket and set screw both seem to be stripped.  Probably have to replace the threaded socket  imbedded in the leg.  Has anyone actually done this specific job who can advise on removing the old socket?

The part is in the Steinway Parts Photo Addendum p.17

The 2014 price list is a little cryptic*.

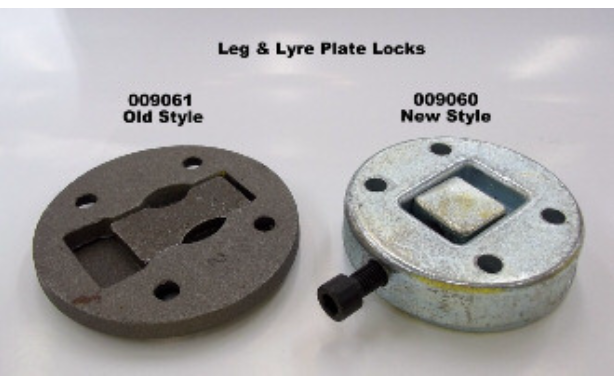

*009060 LEG & LYRE PLATE LOCKS (M & F) - NEW STYLE (USE W/ #097873)

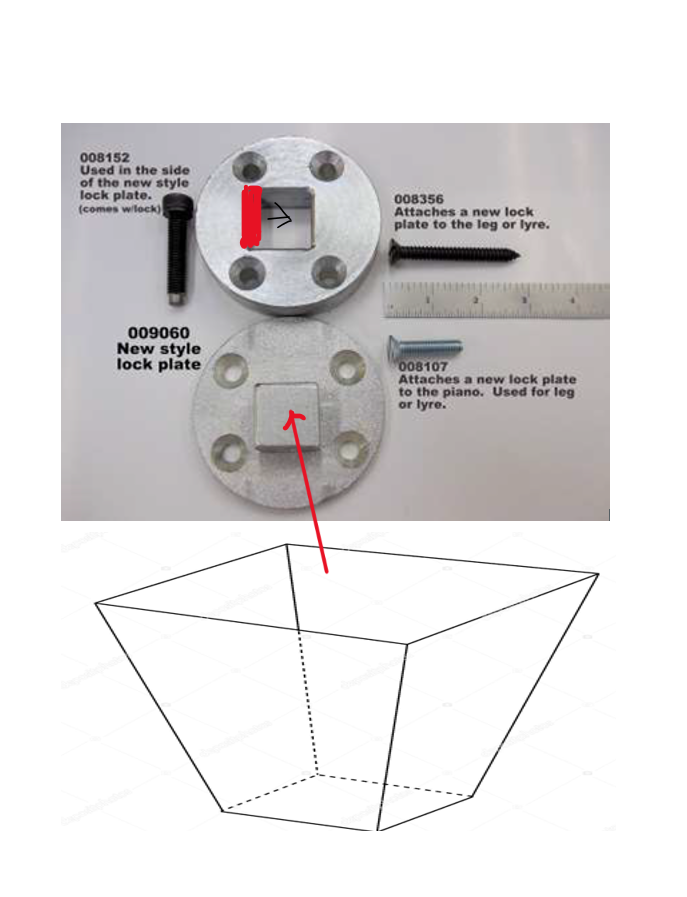

It might be informative to remove the assembly from the leg. Those loose threads at the bottom of your picture may be from the lock itself. I'm not sure if they'd thread both parts, seems like a recipe for disaster. You might want to compare to one of the functional legs too.

------------------------------
